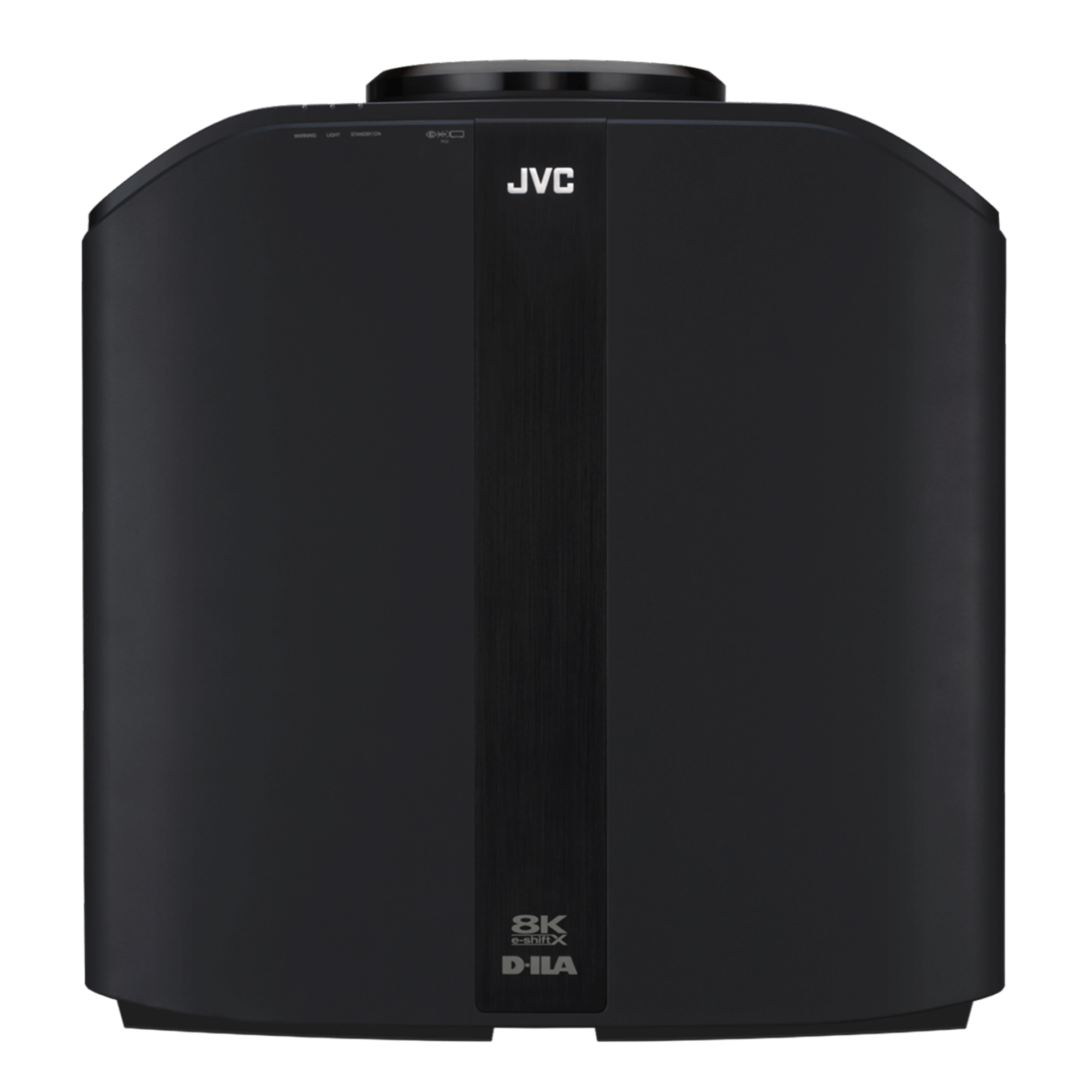

The DLA-NZ9 D-ILA projector is the world's first (as of September 2021, according to research by JVCKENWOOD) home theatre model to feature 8K/60p/4K120p input. It has a new 8K/e-shiftX proprietary technology with the 4-direction shift to reproduce 8K-quality images from 4K signals. 4K120p input also makes the projector ideal for gaming when combined with Low Latency mode. The projector is driven by three 0.69-inch native 4K D-ILA devices, a high-quality 18-element, 16-group 100 mm glass lens with a full aluminium lens barrel, and Ultra-High Contrast Optics contributing to delivering optical brightness of 3,000 lumens. BLU-Escent laser diode light source also contributes to projecting the high-resolution 8K image with full depth and dimensionality with up to 20,000 hours of longevity. Compatible with the latest HDR10+, the projector boasts industry-leading HDR performance. 8K, Laser, and HDR are the keywords that describe JVCs 2021 projector models, and DLA-NZ9 is the high-end model.
Ultra-High Contrast Optics with 4K D-ILA device
High-resolution image projection is reliant on the device and the optical system. The refined 0.69-inch 4K D-ILA device has doubled the speed required, to display images from 120 Hz to 240 Hz-equivalent. The new Ultra-High Contrast Optics featured on the DLANZ8 contribute to achieve optical brightness as high as 2,500 lumens, and the new optics has dramatically improved the image quality by thoroughly suppressing the return of unnecessary light to the projection screen.
HDR10+ Support allows a choice for two dynamic tone mappings
When it comes to reproducing the rich video information of HDR content including the extended brightness range, BT.2020 wide colour gamut and 10-bit gradation, rely on one of the new D-ILA projectors. New models support all HDR formats including HDR10 for Blu-ray and streaming, HLG for broadcasting, and the latest HDR10+ signal format with dynamic metadata compatibility.
JVC projectors are compatible with the two dynamic tone mappings of HDR10+ and Frame Adapt HDR. HDR10+ contains the metadata of the producer's intentions for each scene, Frame Adapt HDR instantly analyses the peak brightness in HDR10 content using an original algorithm. Ensuring you can watch any HDR content in optimal picture quality.
4K120p input ideal for Low Latency Mode
Because these projectors are equipped with 4K120p input, signal latency is infinitesimal, making it effective when displaying high frame-rate gaming content on large screens. What’s more, Low Latency Mode reduces delay in displaying PC signals and games, and improves response to the users’ rapid operations.
Newly developed 8K/e-shiftX technology to achieve 8K resolution
Significant progress has been made to our proprietary 8K/e-shift technology – which combines “e-shift” high-resolution display technology, that doubles the resolution by shifting a pixel by 0.5 pixels, and 0.69-inch native 4K D-ILA device. Shift direction has increased from the conventional two diagonal directions to four directions of up, down, left, and right, to enable display of 8K signal information in its entirety.
The result is an 8K resolution, enhancing the sense of three-dimensionality and immersion.
Essential all-glass lens to depict all the data in the 8K/4K images
The DLA-NZ9 is equipped with an 17-element, 15-group all-glass lens featuring a full aluminum lens barrel. To project high resolution 8K images to every corner of the screen.
Reliability-proved BLU-Escent Laser Diode for exceptional brightness and longevity
The light source for these projectors is the latest blue laser diode BLU-Escent, which is featured in JVC projectors. BLUEscent technology has been adopted for home theatre projectors to achieve exceptional brightness and longevity of 20,000 hours*. Laser diode allows dynamic control of brightness to reproduce images that are closer to human perception. Combining the latest BLU-Escent package with the D-ILA device achieves detailed, smooth, powerful video expression.
